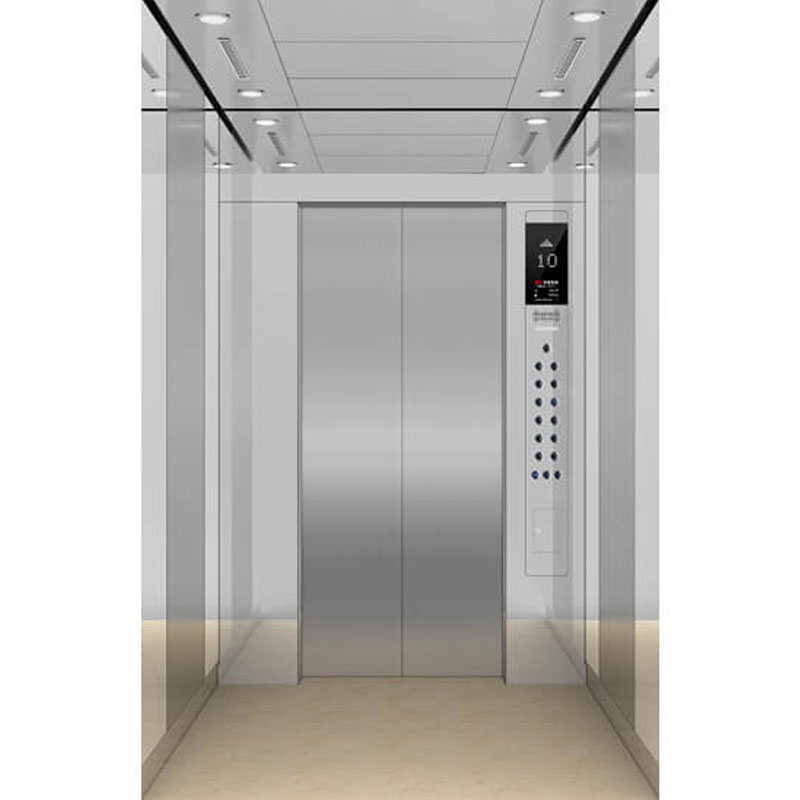

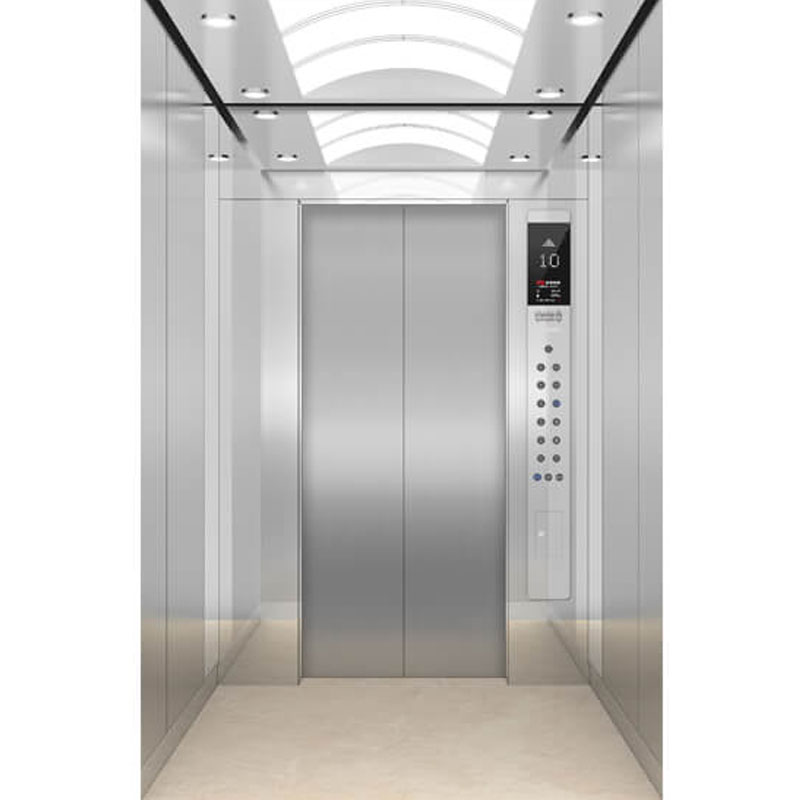

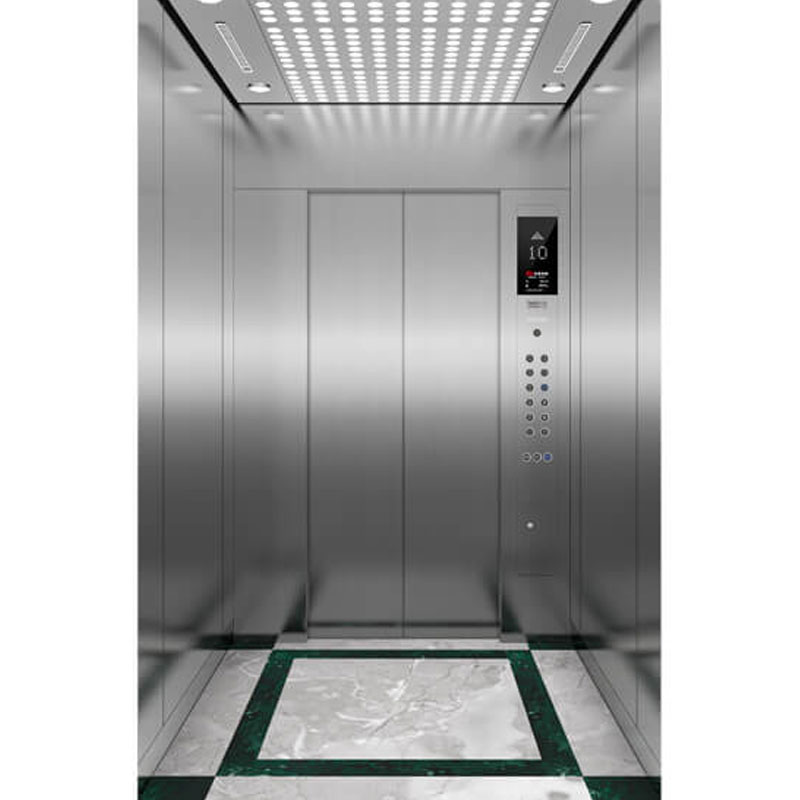

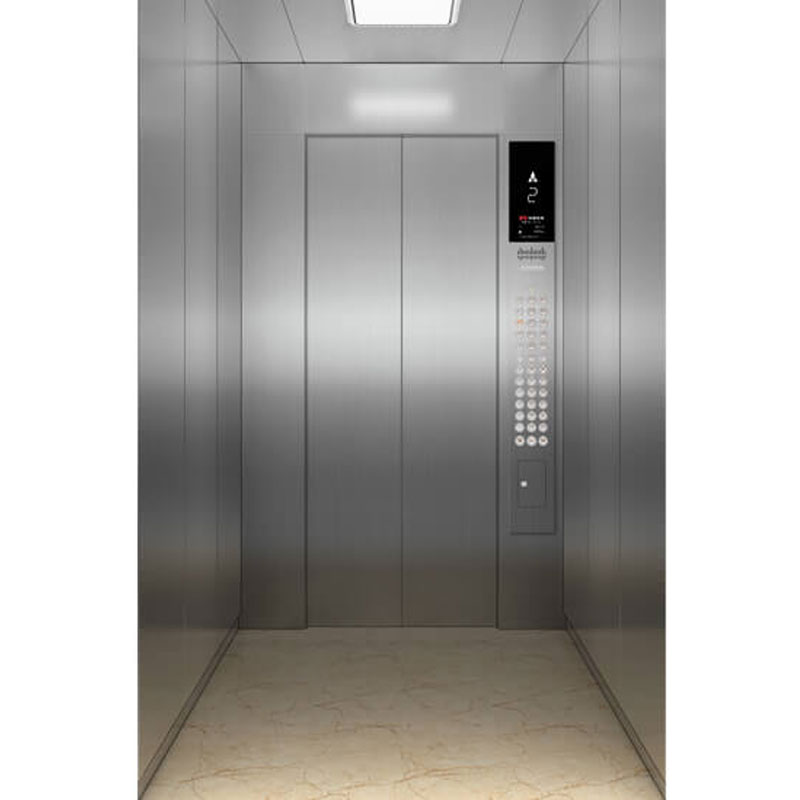

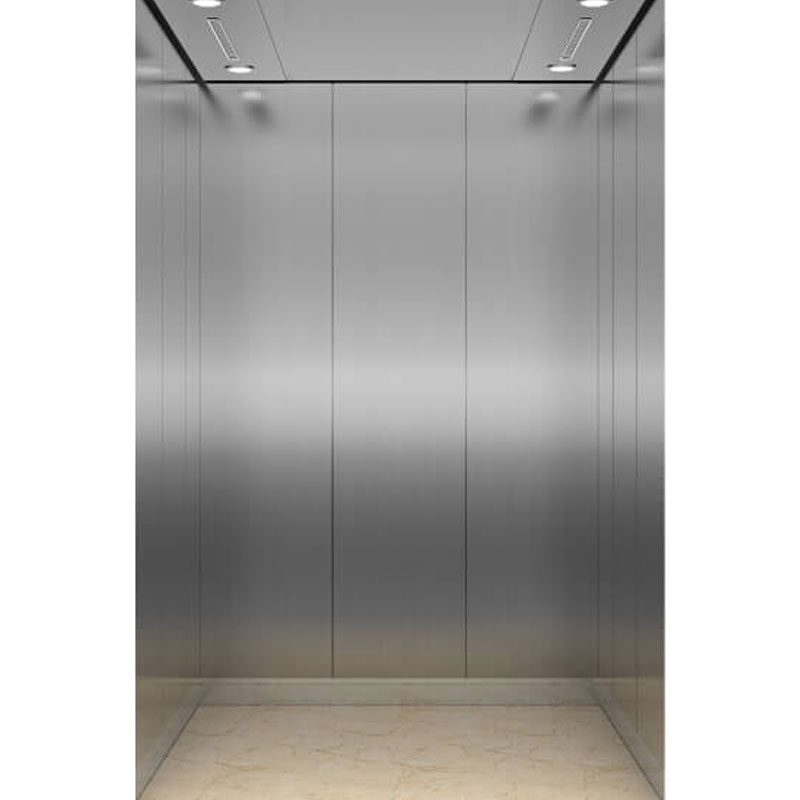

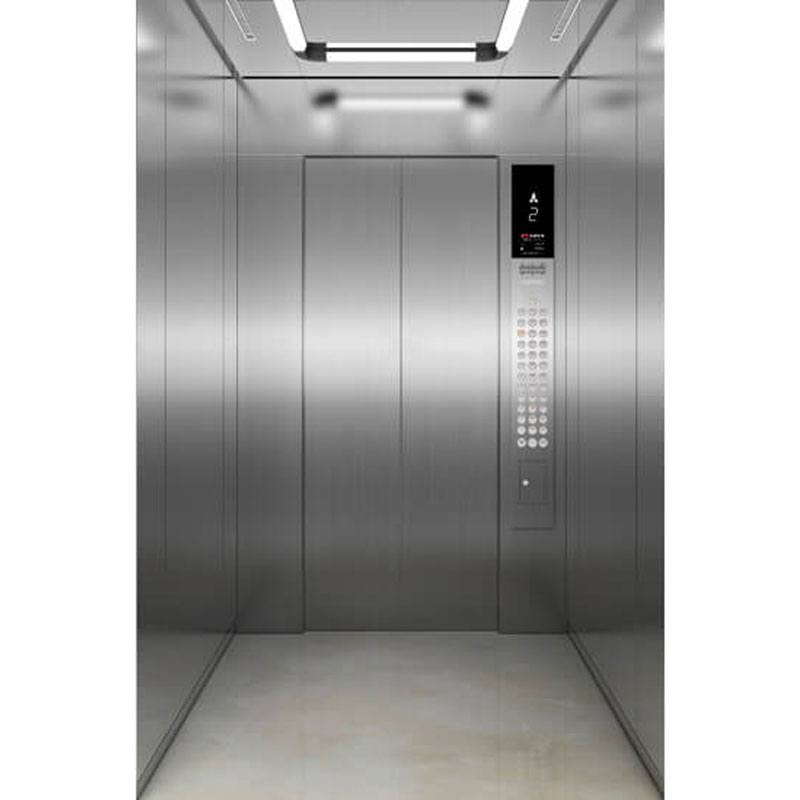

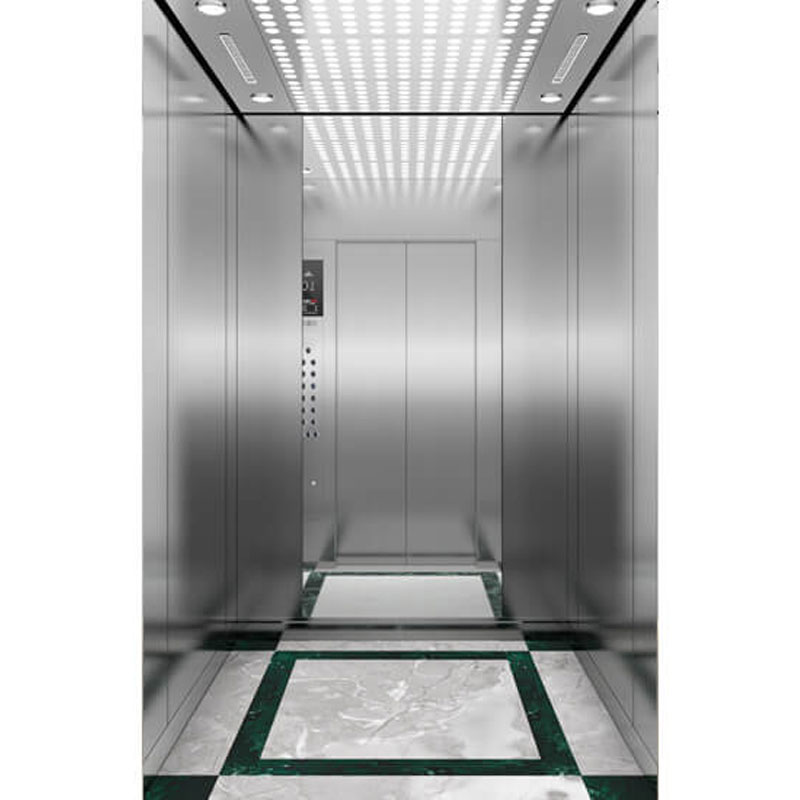

METIS-CR1 is a new-generated product of the classic compact machine room of the IFE elevator, inheriting the concept of safety, comfort, energy-saving and environmental friendly. Satisfying the high-efficient operation requirements of various types of buildings such as residential buildings, office buildings and hotels for providing passengers with an efficient enjoyment.
Safe, Comfort
And Efficient Experience
By Human Technology
| NO. | Specification | 630(8P) | 800(10P) | 1050(14P) | 1350(18P) | 1600(21P) | ||||||||||||||||||
| 1 | Capacity (kg) | 630 | 800 | 1050 | 1350 | 1600 | ||||||||||||||||||
| 2 | Speed (m/s) | 1 | 1.5 | 1.75 | 1 | 1.5 | 1.75 | 2 | 1 | 1.5 | 1.75 | 2 | 2.5 | 1 | 1.5 | 1.75 | 2 | 2.5 | 1 | 1.5 | 1.75 | 2 | 2.5 | |
| 3 | Operation System | full collective selection operation | ||||||||||||||||||||||
| 4 | Driving System | VVVF | ||||||||||||||||||||||
| 5 | Door Operator System | VVVF | ||||||||||||||||||||||
| 6 | Traction Machine | Permanent Magnet Synchronous Gearless type | ||||||||||||||||||||||
| 7 | Control System | CTRL80 | ||||||||||||||||||||||
| 8 | Parallel Elevators | 2 units | ||||||||||||||||||||||
| 9 | Group Control Elevators | 3-8 units | ||||||||||||||||||||||
| 10 | Wide Car | Car Dimension mm width*depth | 1400*1100 | 1400*1350*2500 | 1600*1500 | 1950*1500 | 1950*1750 | |||||||||||||||||
| 13 | Shaft Size mm W*H | 2000*1750 | 2000*2000 | 2200*2100 | 2600*2200 | 2600*2500 | ||||||||||||||||||
| 16 | Deep Car1 | Car Dimension mm width*depth | - | 1200*1600 | 1300*1750 | 1700*1750 | 1700*2000 | |||||||||||||||||
| 18 | Shaft Size mm W*H | - | 2000*2000 | 2200*2100 | 2600*2200 | 2600*2500 | ||||||||||||||||||
| 20 | Deep Car2 | Car Dimension mm width*depth | - | - | 1100*2100 | 1200*2400 | 1400*2400 | |||||||||||||||||
| 22 | Shaft Size mm W*H | - | - | 2050*2500 | 2150*2750 | 2400*2800 | ||||||||||||||||||
